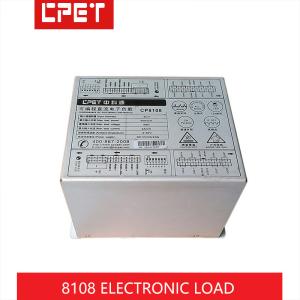

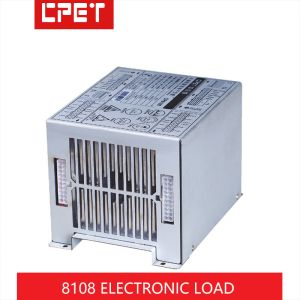

Adjustable Power Electronic Load Module LED Drive Power Aging Load Module
Scope of application
Isolated & non-isolated LED driver TV power, LED backlight driver
Power charger, adapter DC-DC converter
Power with multiple voltage output and positive & negative voltage output
Outstanding functions
1. Support settings of Von/Von latch
2. 2 Road extension logic signal output
3. Apply 6½ regulator to calibrate automatically
| Model | CP-8108 |
| Input voltage range | 1-500V |
| Input current range | 0.05-5A |
| Single channel power | 40W |
| Pull mode | CC/CV/LED/CR/CP |
| Votage comtrol precision | ±1%+0.5%FS |
| Voltage accuoacy | ±1%+0.5%FS |
| Current readback accuracy | ±1%+0.5%FS |
| Communication mode | RS-485 |
