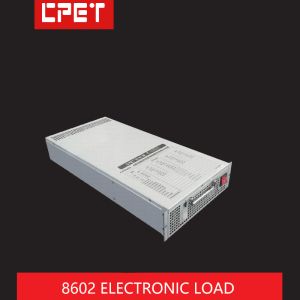

Programmable Integrated Energy-Saving Feedback DC Electronic Load Factory
Scope of application
Outstanding functions
Performance parameters
| Model | CP8602 |
| Input voltage range | 10~120V |
| Input current range | 0.5~60A |
| Channel number | 4CH |
| Single channel power | 800W |
| Pull mode | CC,CV,LED,CR,CP |
| Votage comtrol precision | ±1%+0.2%FS |
| Voltage accuoacy | ±1%+0.2%FS |
| Current control accuracy | ±1%+0.2%FS |
| Current readback accuracy | ±1%+0.2%FS |
| Type of load | Single phase AC grid connection |
| Output voltage range | 180~240VAC |
| Output rated voltage | 220VAC 50Hz |
| Output grid-connected current | 25A Max |
| Tracking frequency range | 47~63Hz |
| Current harmonic (THD) | ≤3% |
| Dc injection component | ≤5mA |
| Communication mode | RS-485 |
